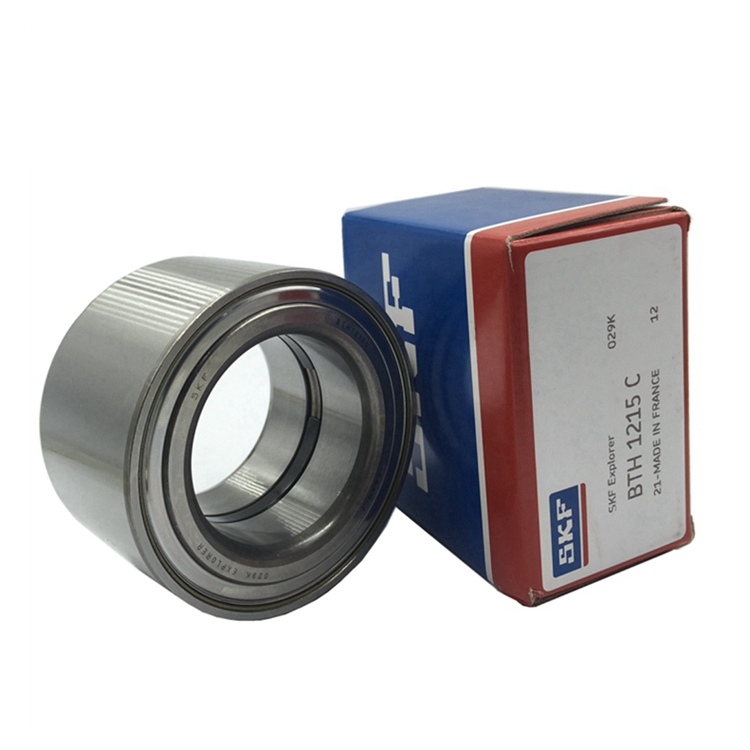

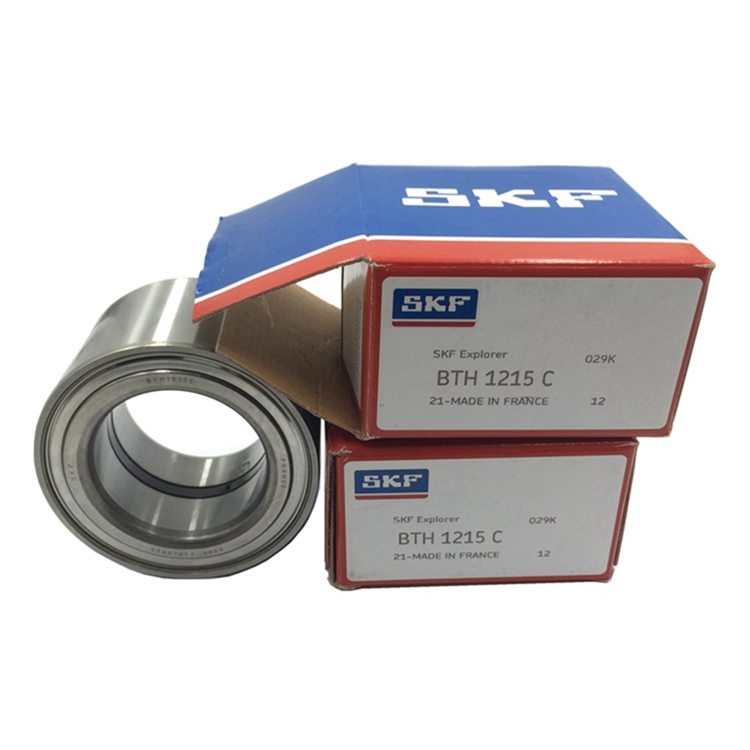

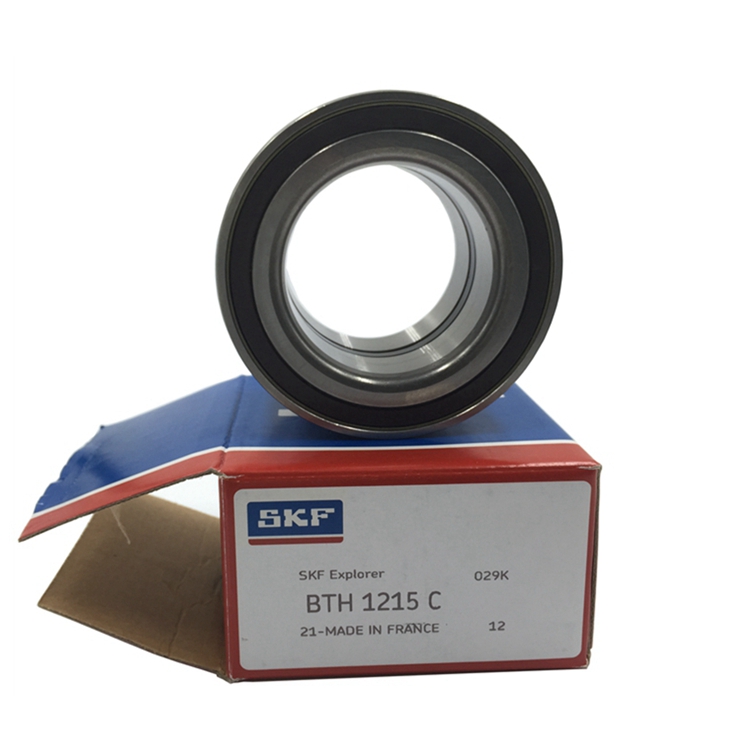

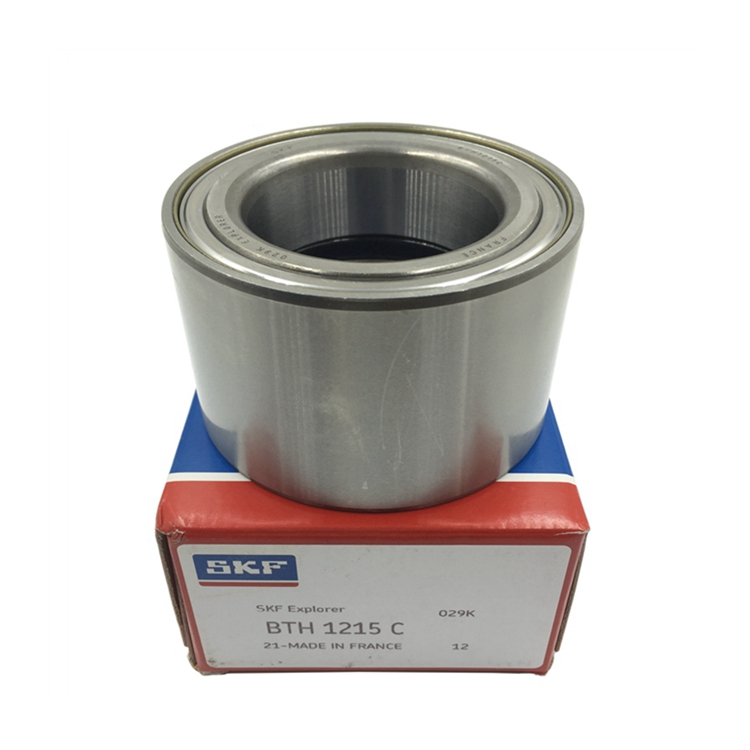

SKF Bearings BTH1215C Double Row Roller Bearings SKF DU55900054 VKBA65770 55X90X54 Bearing BTH1215

Wheel Bearing BTH1215C Detail

1.Automobile wheel bearing structure :

The largest number of wheel bearings for cars used in the past was the use of single row tapered roller or ball bearings in pairs. With the development of technology, car hub units have been widely used in cars. The range and use of hub bearing units is growing, and today it has reached the third generation: the first generation consists of double row angular contact bearings. The second generation has a flange for fixing the bearing on the outer raceway, which can be simply fixed to the axle by a nut. Make the maintenance of the car easier. The third-generation hub bearing unit is equipped with a bearing unit and an anti-lock brake system ABS. The hub unit is designed with an inner flange and an outer flange, the inner flange is bolted to the drive shaft, and the outer flange mounts the entire bearing together.

2.Automotive wheel bearing applications :

The main function of the hub bearing is to load and provide precise guidance for the rotation of the hub. It is both an axial load and a radial load and is a very important component. The traditional automotive wheel bearings are composed of two sets of tapered roller bearings or ball bearings. The installation, oiling, sealing and clearance adjustment of the bearings are carried out on the automobile production line. This structure makes it difficult to assemble in a car production plant, high in cost, and poor in reliability, and the car needs to be cleaned, oiled, and adjusted at the time of maintenance at the maintenance point.

3.Automotive wheel bearing features :

The hub bearing unit is developed on the basis of standard angular contact ball bearings and tapered roller bearings. It integrates two sets of bearings and has good assembly performance, can eliminate clearance adjustment, light weight, compact structure and load capacity. Large, sealed bearings can be pre-loaded with grease, omitting external hub seals and maintenance-free. They have been widely used in cars, and there is a tendency to gradually expand applications in trucks.

4. Automotive wheel bearings catalog :

SOLUTION

– At the beginning, we will have a communication with our customers on their demand, then our  engineers will work out an optimum solution based on the customers’ demand and condition.
PRODUCTION

– Running in accordance with ISO 9001 quality system, the advanced production equipments,  sophisticated processing technology, strict quality management system, skilled workers and innovative technical team, make our bearings in continuous quality improvement & technology development.
QUALITY CONTROL (Q/C)

- In accordance with ISO standards, we have professional Q/C staff, precision testing instruments and internal inspection system, the quality control is implemented in every process from material receiving to products packaging to ensure our bearings quality
PACKAGE

– Standardized export packing and environment-protected packing material are used for our bearings, the custom boxes, labels, barcodes etc. can also be provided according to our customer’s request.
LOGISTIC

 – Normally, our bearings will be sent to the customers by ocean transportation due to its heavy weight, airfreight, express is also available if our customers need.
WARRANTY

– We warrant our bearings to be free from defects in material and workmanship for a 12 months period from the shipping date, this warranty is voided by non-recommended use, improper installation or physical damage.

High Quality Bearings, Choose Ruben.
Shandong Ruben Bearing Co., Ltd is a professional bearing manufacture located in Jinan, Shandong.

We are established in year 2005 and we have 10 years experience in bearing manufacture.
We mainly produce wheel hub bearings, ball bearings, roller bearings etc.



Q:What’s your after-sales service and warranty?

A: We promise to bear the following responsibility when defective product is found:

1.12 months warranty from the first day of receiving goods;

2. Replacements would be sent with goods of your next order;

3. Refund for defective products if customers require.

Q:Do you accept ODM&OEM orders?

A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize housings in different styles, and sizes in different brands, we also customize circuit board & packaging box as per your requirements.

Q:What’s the MOQ?

A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.

Q:How long is the lead time?

A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.

Q:Do you offer free samples?

A: Yes we offer free samples to distributors and wholesalers, however customers should bear freight.

 We DO NOT offer free samples to end users.

Q:How to place orders?

A: 1. Email us the model, brand and quantity, consignee information, shipping way and payment terms;

2. Proforma Invoice made and sent to you;

3. Complete Payment after confirming the PI;

4. Confirm Payment and arrange production.
